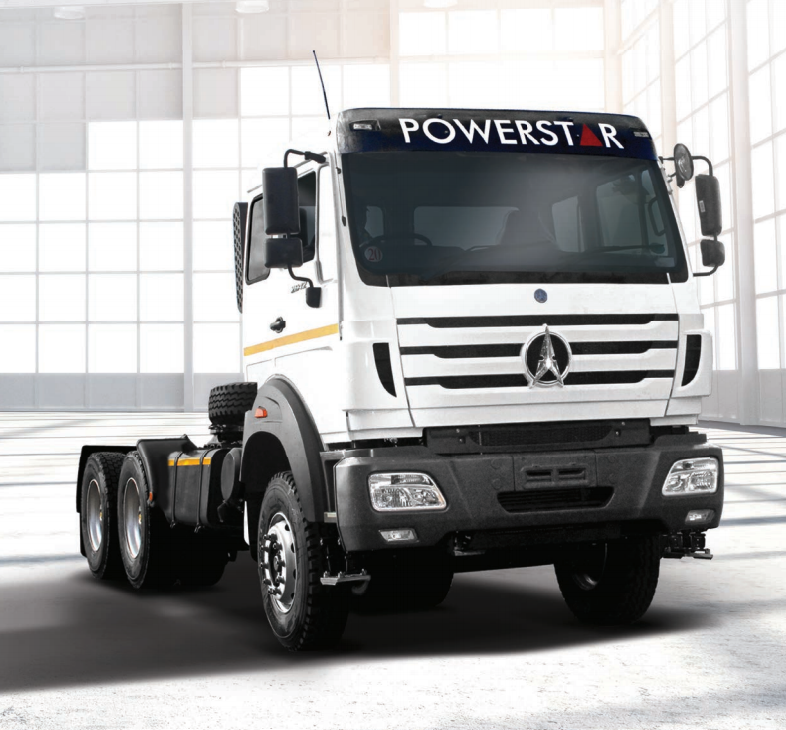

Powerstar VX-2642 6x4
Truck Tractor
Specs
- Make: Weichai Euro 2 Turbo Intercooled
- Model Configuration: WP 12.420 E32
- Max Power - Kw @ r/min: 309/2200
- Max Torque - N.m @ r/min: 1750/1300-1400
- HP: 420
- Cylinder: 6 Inline
- Water Cooled: Yes
- Direct Injection: Yes
- Engine Driven P.T.O: No
- Displacement (I): 11.596
- Compression Ratio: 17:01
- Service: Double circuit air brakes
- Emergency / Parking: Spring potential brake
- Auxiliary: ABS & EVB
- Size and ply rating: 315x80R22.5 incl spare wheel
- Type: VR4/01D-7.5
- Suspension: Non-free standing stabilization leafspring, hydraulic shock absorber, transverse stabilizer
- Type: HL7/015DS-13/4.2
- Suspension Stabilizator: suspension, 13 pcs leaf spring (each 20mm)
- Alternator: 55Amp
- Starter Motor: 5.58kW
- Batteries: 2 x 12V - 135AH
- Gradeability: @ GVM: 24% @GVM
- Max Geared Road Speed: 105km/h
- Final Drive Ratio: 4.769
- Make / Type / Size: GFX 430mm single
- Operation Diaphragm: Single dry frictional disc, diaphragm spring, pulling type
- New Vehicle: 3 years / 300 000km (SA only)
- Make/Model: 12JS200TA + QH50
- No Gears: 12
- Synchromesh or Constant Mesh: Synchromesh
- P.T.O: Yes
- Overall Length (OL): 6 935
- Overall Width (OW): 2 495
- Overall Height (OH): 3 160
- Front Overhang (FOH): 1 410
- Rear Overhang (ROH): 625
- Wheel Base (WB): 4 175
- Bumper to Back of Cab (BBC): 2 420
- Cab to rear axle / unit (CA): 3 165
- Turning Radius (TR): 8 500
- Fuel Tank Capacity (FTC): 400l
- Manufacturers Gross Vehicle Mass (GVM): 26 000
- Manufacturers Gross Combination Mass (GCM): 65 000
- Manufacturers Front Axle Mass (GA): 7 500
- Manufacturers Rear Axle Mass (GAU): 26 000
- Permissible Maximum Vehicle Mass (V): 25 500
- Permissible Maximum Front Axle Mass (AF): 7 500
- Permissible Maximum Rear Axle Mass (AR): 18 000
- Unladen Front Axle Mass (UF): 4 700
- Unladen Rear Axle Mass (UR): 4 900
- Total Unladen Mass (UT): 9 600
- Permissible Max Drawing Vehicle Mass (D/T): 65 000
- Hydraulic Tiltable Cab
