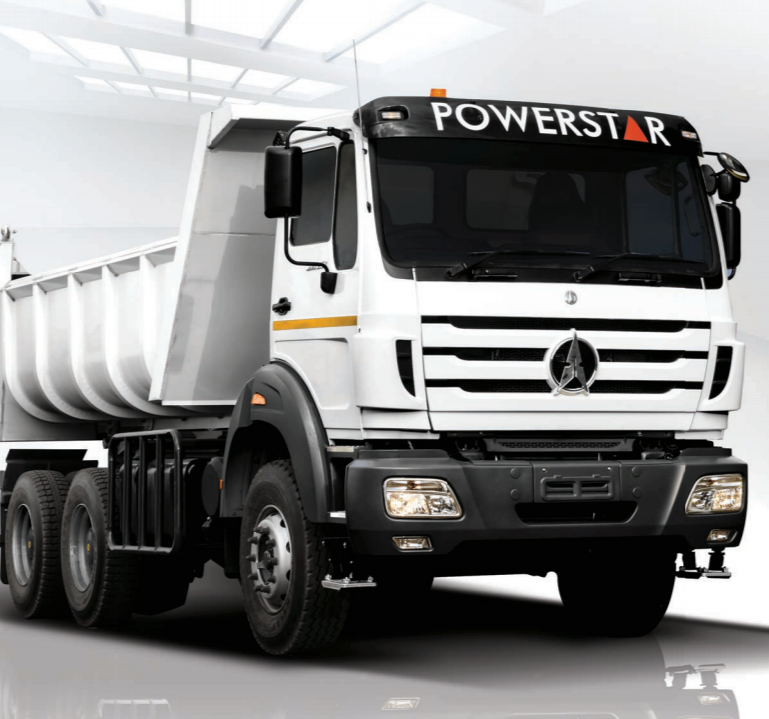

Powerstar VX-2628 6x4 SWB & LWB
Powerstar VX-2628 6x4 SWB & LWB Tipper -(SWB) / Mixer - (B Chassis) / Water tanker (SWB - LWB) / Freight Carrier / Waste Compactor
Specs
- Make: Weichai Euro 2 Turbo charged Intercooled
- Model Configuration: WP 10.290 E32
- Max Power - Kw @ r/min: 213/2200
- Max Torque - N.m @ r/min: 1160/1200~1600
- HP: 280
- Cylinder: 6 Inline
- Water Cooled: Yes
- Direct Injection: Yes
- Engine Driven P.T.O: Applicable to 2628B Only
- Displacement (I): 9.726
- Compression Ratio: 17:01
- Service: Double circuit air brakes
- Emergency / Parking: Spring potential brake
- Auxiliary: ABS & EVB
- Size and ply rating: 315/80R22.5 incl spare wheel
- Type: VR4/01D-7.5
- Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber Middle HD7/016DGS-13/4.769
- Type: HD7/016DGS - HL7/015DS-13/4.796
- Suspension: Stabilizator suspension, 13 pieces leaf spring (20mm each), Hub reduction axles
- Alternator: 70Amp
- Starter Motor: 5.58kW
- Batteries: 2 x 12V - 120AH
- Gradeability: @ GVM: 30% @GVM
- Max Geared Road Speed: 90km/h (Limited to 80km/h)
- Final Drive Ratio: 4.769
- Make / Type / Size: GFX 430mm single
- Operation Diaphragm: Single dry frictional disc, diaphragm spring, pulling type
- New Vehicle: 3 years / 300 000km (SA only)
- Make/Model: 12JS160T+QH50
- No Gears: 12
- Synchromesh or Constant Mesh: Synchromesh
- Transfer Box: N/A
- P.T.O: Yes
- Overall Length (OL): 7 680 (SWB) / 9 390 (LWB)
- Overall Width (OW): 2 495
- Overall Height (OH): 3 085
- Front Overhang (FOH): 1 435
- Rear Overhang (ROH): 1 350 (SWB) / 1 940 (LWB)
- Wheel Base (WB): 4 175 (SWB) / 5 175 (LWB)
- Bumper to Back of Cab (BBC): 3 735 (SWB) / 4 735 (LWB)
- Cab to rear axle / unit (CA): 4 060
- Turning Radius (TR): 8 500
- Fuel Tank Capacity (FTC): 400 LTR
- Manufacturers Gross Vehicle Mass (GVM): 26 000
- Manufacturers Gross Combination Mass (GCM): 43 000
- Manufacturers Front Axle Mass (GA): 7 500
- Manufacturers Rear Axle Mass (GAU): 26 000
- Permissible Maximum Vehicle Mass (V): 25 500
- Permissible Maximum Front Axle Mass (AF): 7 500
- Permissible Maximum Rear Axle Mass (AR): 18 000
- Unladen Front Axle Mass (UF): 4 140
- Unladen Rear Axle Mass (UR): 4 540
- Total Unladen Mass (UT): 8 680
- Permissible Max Drawing Vehicle Mass (D/T): 43 000
- Hydraulic Tiltable Cab
