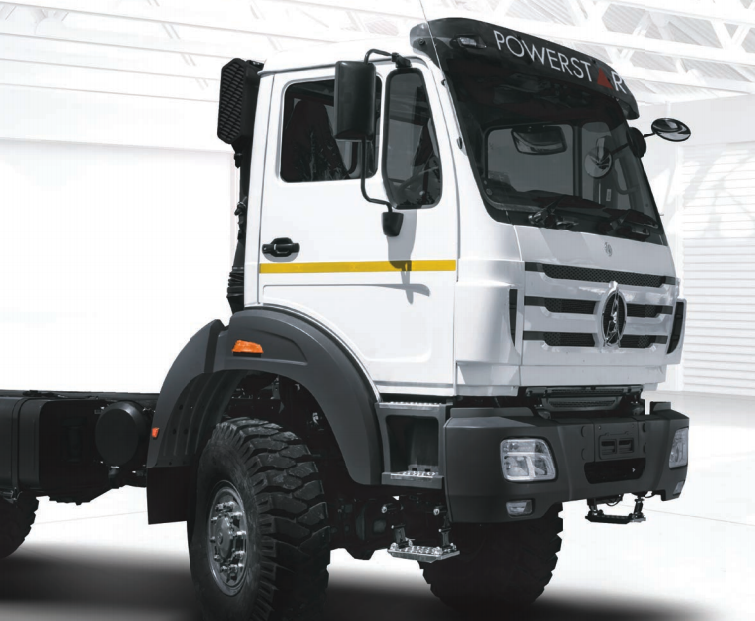

Powerstar VX-1729 4x4
Tipper / Water Tanker / Freight Carrier / Waste Compactor
Specs
- Make: Weichai Euro 2 Turbo charged Intercooled
- Model Configuration: WP 10.290 E32
- Max Power - Kw @ r/min: 213/2200
- Max Torque - N.m @ r/min: 1160/1200~1600
- HP: 290
- Cylinder: 6 Inline
- Water Cooled: Yes
- Direct Injection: Yes
- Engine Driven P.T.O: No
- Displacement (I): 9.726
- Compression Ratio: 17:01
- Service: Double circuit air brakes
- Emergency / Parking: Spring potential brake
- Auxiliary: ABS & EVB
- Size and ply rating: 1400x20 incl spare wheel
- Type: AR7/10DS-7/4.769
- Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber
- Type: HL7/015DS-13 - 4.769
- Suspension: Stabilizator suspension, hydraulic shock absorber
- Alternator: 70Amp
- Starter Motor: 5.58kW
- Batteries: 2 x 12V - 135AH
- Gradeability: @ GVM: 60% @GVM
- Max Geared Road Speed: 98km/h (Limited to 80km/h)
- Final Drive Ratio: 4.769
- Make / Type / Size: GFX 430mm single
- Operation Diaphragm: Single dry frictional disc, diaphragm spring, pulling type
- New Vehicle: 3 years / 300 000km (SA only)
- Make/Model: 12JS160T
- No Gears: 12
- Synchromesh or Constant Mesh: Synchromesh
- Transfer Box: VG1400-3W (14000N.m)
- P.T.O: No
- Overall Length (OL): 8 390
- Overall Width (OW): 2 495
- Overall Height (OH): 3 200
- Front Overhang (FOH): 1 435
- Rear Overhang (ROH): 2 340
- Wheel Base (WB): 4 500
- Bumper to Back of Cab (BBC): 1 880
- Cab to rear axle / unit (CA): 4 060
- Turning Radius (TR): 9 000
- Fuel Tank Capacity (FTC): 400 LTR Aluminium
- Manufacturers Gross Vehicle Mass (GVM): 17 000
- Manufacturers Gross Combination Mass (GCM): 34 000
- Manufacturers Front Axle Mass (GA): 7 500
- Manufacturers Rear Axle Mass (GAU): 13 000
- Permissible Maximum Vehicle Mass (V): 15 500
- Permissible Maximum Front Axle Mass (AF): 7 500
- Permissible Maximum Rear Axle Mass (AR): 8 000
- Unladen Front Axle Mass (UF): 4 740
- Unladen Rear Axle Mass (UR): 2 400
- Total Unladen Mass (UT): 7 140
- Permissible Max Drawing Vehicle Mass (D/T): 34 000
- Hydraulic Tiltable Cab
