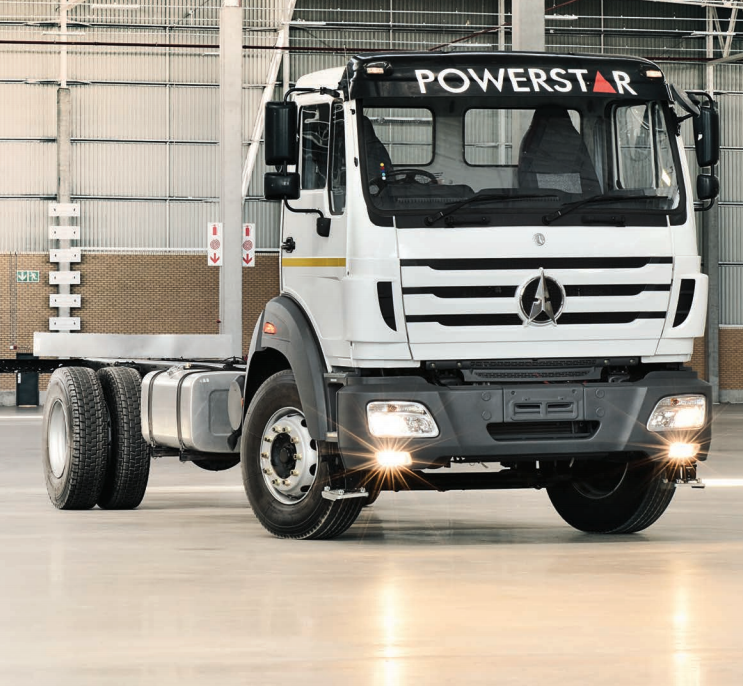

Powerstar VX16-27-4x2
Tipper / Water Tanker / Freight Carrier
Specs
- Make: Weichai Euro 3 Turbo charged Intercooled
- Model Configuration: WP7.270 E30
- Max Power - Kw @ r/min: 199/2300
- Max Torque - N.m @ r/min: 1100/1200~1600
- HP: 270
- Cylinder: 6 Inline
- Water Cooled: Yes
- Direct Injection: Yes
- Engine Driven P.T.O: No
- Displacement (I): 7.14
- Compression Ratio: 18:01
- Service: Double circuit air brakes
- Emergency / Parking: Spring potential brake
- Auxiliary: ABS & EVB
- Size and ply rating: 12R22.5 incl spare wheel
- Type: VR4/01C-7.5 Disc Brake
- Suspension: Three leaf spring, hydraulic shock absorber, transverse stabilizer
- Type: HL8/02D-10/4.11(ABS), Hypoid
- Suspension: Stabilizator suspension, hydraulic shock absorber, Transverse stabilizer
- Alternator: 70Amp
- Starter Motor: 5.75kW
- Batteries: 2 x 12V - 135AH
- Gradeability: @ GVM: 30% @GVM
- Max Geared Road Speed: 110km/h (Limited to 80km/h)
- Final Drive Ratio: 4.11
- Make / Type / Size: GFX 420mm single
- Operation Diaphragm: Single dry frictional disc, diaphragm spring, pushing type
- New Vehicle: 3 years / 400 000km (SA only)
- Make/Model: 8JS118TB-B+QH50
- No Gears: 8
- Synchromesh or Constant Mesh: Synchromesh
- Transfer Box: N/A
- P.T.O: Yes
- Overall Length (OL): 9 600
- Overall Width (OW): 2 495
- Overall Height (OH): 2 905
- Front Overhang (FOH): 1 435
- Rear Overhang (ROH): 2 550
- Wheel Base (WB): 5 500
- Bumper to Back of Cab (BBC): 1 880
- Cab to rear axle / unit (CA): 5 055
- Turning Radius (TR): 10 000
- Fuel Tank Capacity (FTC): 400 LTR Aluminium
- Manufacturers Gross Vehicle Mass (GVM): 16 000
- Manufacturers Gross Combination Mass (GCM): 28 000
- Manufacturers Front Axle Mass (GA): 7 500
- Manufacturers Rear Axle Mass (GAU): 10 000
- Permissible Maximum Vehicle Mass (V): 16 000
- Permissible Maximum Front Axle Mass (AF): 7 100
- Permissible Maximum Rear Axle Mass (AR): 9 000
- Unladen Front Axle Mass (UF): 3 840
- Unladen Rear Axle Mass (UR): 2 440
- Total Unladen Mass (UT): 6 280
- Permissible Max Drawing Vehicle Mass (D/T): 28 000
- Hydraulic Tiltable Cab
