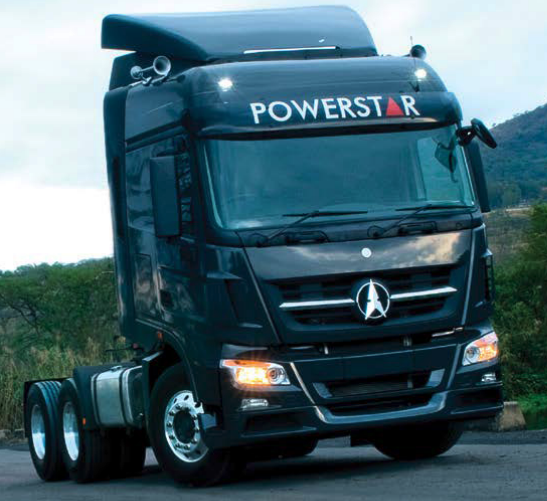

Powerstar V3-2646 6x4
Truck Tractor
Specs
- Make: Weichai Euro 3 Turbo charged Intercooled
- Model Configuration: WP 12.460N
- Max Power - Kw @ r/min: 338/1900
- Max Torque - N.m @ r/min: 2110/1000-1400
- HP: 460
- Cylinder: 6 Inline
- Water Cooled: Yes
- Direct Injection: Yes
- Engine Driven P.T.O: No
- Displacement (I): 11.596
- Compression Ratio: 17:01
- Service: Double circuit air brakes
- Emergency / Parking: Spring potential brake
- Auxiliary: ABS & EVB
- Size and ply rating: (F) - 385/65R22.5 (R) - 315/80R22.5 incl spare wheel Aluminium Rims
- Type: VR4/01C-7.5 Disc Brake
- Suspension: Three leaf spring, hydraulic shock absorber, transverse stabilizer
- Type: HD6/01CG & HL6/01C-13 Hypoid Disc Brake Beiben440
- Suspension: Stabilizer suspension, four leaf spring
- Alternator: 80 Amp
- Starter Motor: 5.58kW
- Batteries: 2 x 12V – 180AH
- Gradeability: @ GVM 22% @ GVM
- Max Geared Road Speed: 107km/h (Limited to 80km/h)
- Final Drive Ratio: 4.11
- Make / Type / Size: GFX 430mm single
- Operation Diaphragm: Single dry frictional disc, diaphragm spring, pulling type
- New Vehicle: 3 years / 400 000km (SA only)
- Make/Model: Fast Gear 16JZSD240A AMT
- No Gears: 16
- Synchromesh or Constant Mesh: Synchromesh
- Transfer Box: N/A
- P.T.O: No
- Retarder: FHB320B
- Overall Length (OL): 6 905
- Overall Width (OW): 2 500
- Overall Height (OH): 3 475
- Front Overhang (FOH): 1 515
- Rear Overhang (ROH): 703
- Wheel Base (WB): 3 975
- Bumper to Back of Cab (BBC): 2 625
- Cab to rear axle / unit (CA): 2 905
- Turning Radius (TR): 9 000
- Fuel Tank Capacity (FTC): 700 LTR Aluminium
- Manufacturers Gross Vehicle Mass (GVM): 26 000
- Manufacturers Gross Combination Mass (GCM): 65 000
- Manufacturers Front Axle Mass (GA): 7 500
- Manufacturers Rear Axle Mass (GAU): 26 000
- Permissible Maximum Vehicle Mass (V): 25 000
- Permissible Maximum Front Axle Mass (AF): 7 500
- Permissible Maximum Rear Axle Mass (AR): 18 000
- Unladen Front Axle Mass (UF): 4 750
- Unladen Rear Axle Mass (UR): 3 990
- Total Unladen Mass (UT): 8 740
- Permissible Max Drawing Vehicle Mass (D/T): 65 000
- Hydraulic Tiltable Cab
