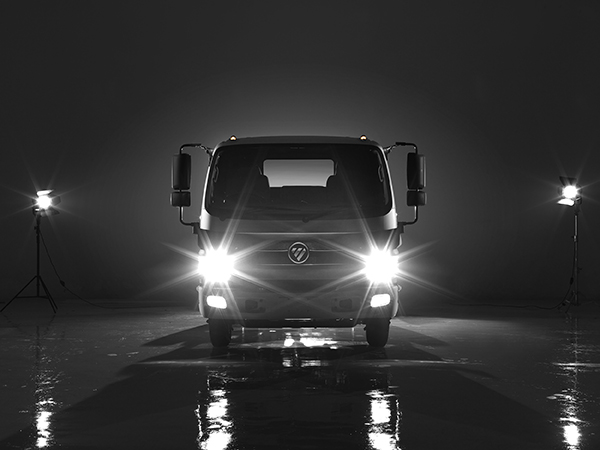

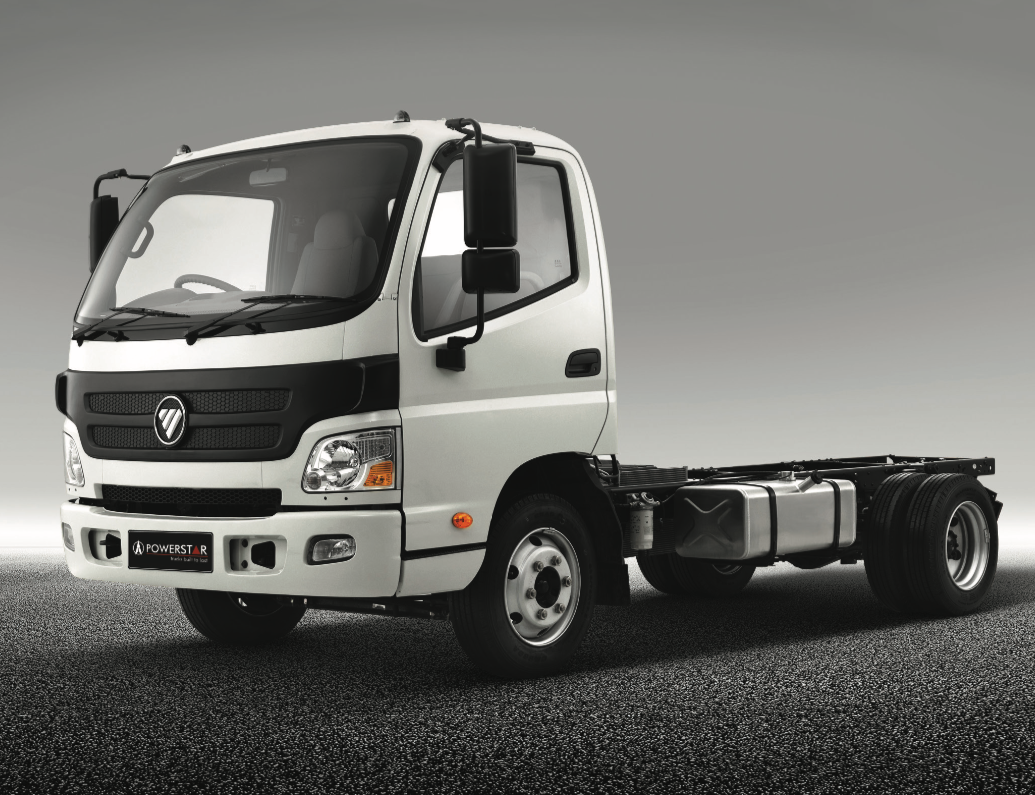

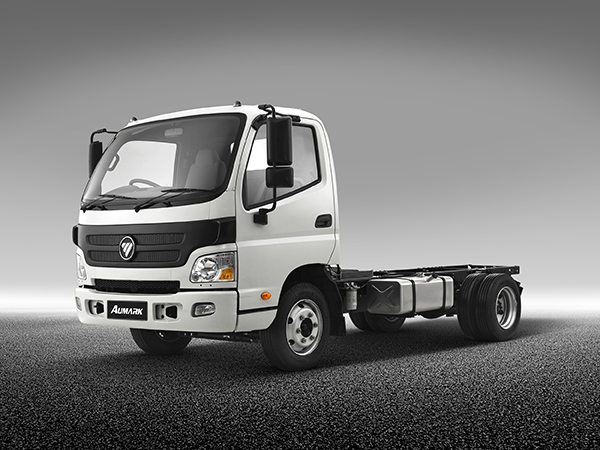

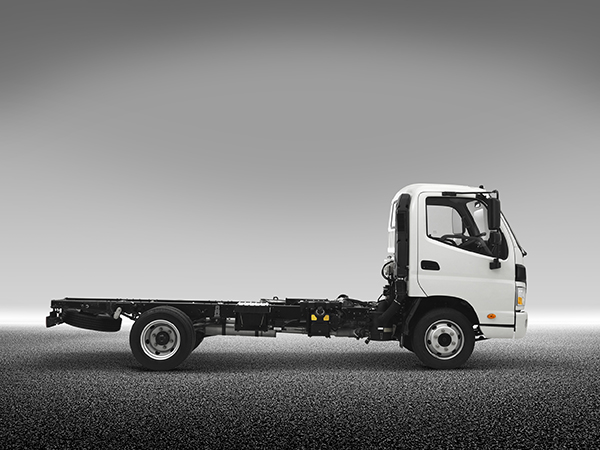

Powerstar ft3
Specs
- Aircon, Radio, cruise control
- Make: Cummins FT3 7515-34 Euro 3
- Model: Configuration ISF3.8s3154
- Max Power - Kw @ r/min: 115/2600
- Max Torque - N.m @ r/min: 500/1200~1900
- HP: 154
- Cylinder: 4 Inline
- Water Cooled: Yes
- Direct Injection: Yes / Common Rail
- Engine Driven P.T.O: No
- Displacement (I): 3,76
- Compression Ratio: 17.2:1
- Service: Air Brake
- Emergency / Parking: N/A
- Auxiliary: Exhaust Brake
- Size and ply rating: AEOLUS 215/75R17.5-16PR
- Type: Forged I-beam
- Suspension: Non-independent, front and rear leaf spring
- Brake: Disc
- Type: Integral
- Suspension: Non-independent, front and rear leaf spring
- Brake: Drum
- Alternator: 70 Amp
- Starter Motor: 24 Volt/3.6 KW
- Batteries: 2 x 12V - 100Ah
- Gradeability: @ GVM 30%
- Max Geared Road Speed: 113 kmh
- Final Drive Ratio: 4,11
- Make / Type / Size: ø350 * ø220
- Operation Diaphragm: spring clutch
- New Vehicle: 2 Year / Unlimited Mileage
- Make/Model: ZF Ecolite 6S500TO
- No Gears: 6
- Synchromesh or Constant Mesh: Synchromesh
- Transfer Box: N/A
- P.T.O: No PTO - PTO Interface Only
- Overall Length (OL) 5 875
- Overall Width (OW): 2 250
- Overall Height (OH): 2 280
- Front Overhang (FOH): 1 135
- Rear Overhang (ROH): 1 380
- Wheel Base (WB): 3 360
- Bumper to Back of Cab (BBC): 1 795
- Cab to rear axle / unit (CA): 2 700
- Turning Radius (TR): 9
- Fuel Tank Capacity (FTC): 120 LTR Aluminium
- Manufacturers Gross Vehicle Mass (GVM): 7 500
- Manufacturers Gross Combination Mass (GCM): 9 500
- Manufacturers Front Axle Mass (GA): 2 600
- Manufacturers Rear Axle Mass (GAU): 5 500
- Permissible Maximum Vehicle Mass (V): 7 500
- Permissible Maximum Front Axle Mass (AF): 2 600
- Permissible Maximum Rear Axle Mass (AR): 5 500
- Unladen Front Axle Mass (UF): 1 600
- Unladen Rear Axle Mass (UR): 960
- Total Unladen Mass (UT): 2 560
- Permissible Max Drawing Vehicle Mass (D/T): 9 500

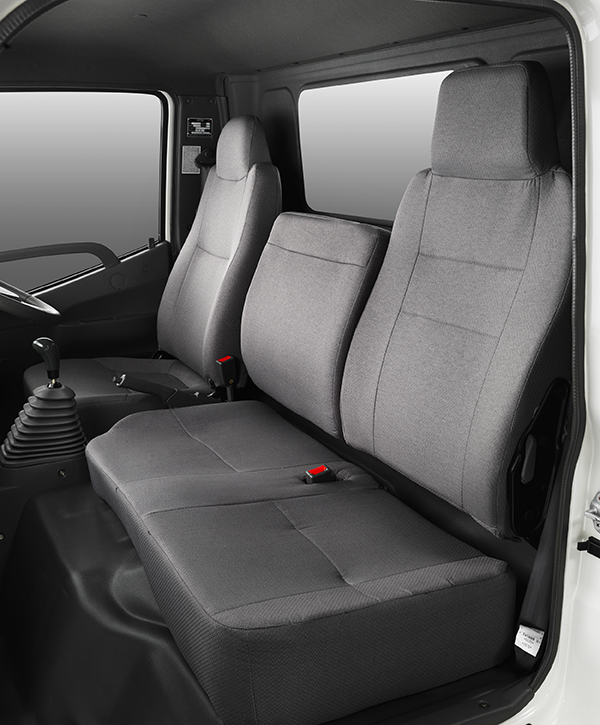

- Day Cab: Yes
